UMDCTF 2024 Writeups

.;,;.? .;,;..

Key Recovery

Oops, Paul’s private key was in the ornithopter when he crashed it. It’s a bit damaged, but can you recover it?

Attachment: out.txt,, modified.pem

5 solves, 496 points

Challenge modified.pem
-----END PRI

We get a wounded RSA key and an encrypted ciphertext. To kick things off we can mask out the parts of the key that were lost and identify what parameters we have left.

Parse key
import base64

with open("modified.pem", "r") as f:
    modified =
modified = modified.strip().split("\n")[1:-1]
modified = [line.ljust(64, "?") for line in modified]
modified = "".join(modified)

unkchar = "?"

pad = ""
key_b64 = modified
key_bytes = base64.b64decode(
    key_b64.replace(unkchar, "A") + pad
key_mask = base64.b64decode(
        "/" if i != unkchar else "A"
        for i in key_b64
    ]) + pad

bufs = [key_bytes, key_mask]
def take(l, desc="?", show=True, full=False, check=None, checkhex=None):
    if check is None and checkhex is not None:
        check = bytes.fromhex(checkhex)
    if check:
        assert int(check.hex(), 16) & int(bufs[1][:l].hex(), 16) == int(bufs[0][:l].hex(), 16)
    if show:
        for i in range(2):
            if l < 30 or full:
                bitcount = bin(int(bufs[i][:l].hex(), 16)).count("1")
                n_set_bits = [f"{bitcount}/{l*8}"] if i == 1 else []
                print(bufs[i][:l][:15].hex(), "...", bufs[i][:l][-15:].hex(), *n_set_bits)

    ret = []
    for i in range(2):
        ret.append(int(bufs[i][:l].hex(), 16))

    for i in range(2):
        bufs[i] = bufs[i][l:]

    return ret

take(4, "struct header", show=False)
take(3, "int length 1, version 0", show=False)
take(15, "sequence ? keytype", show=False)
take(4, "octet stream header", show=False)
take(4, "sequence header", show=False)
take(3, "int length 1, version 0", show=False)

take(4, "int length 0x101 (for n)")
n, nmask = take(0x101, "value of n")

take(5, "int length 0x03, value of e = 65537", checkhex="0203010001")
e = 0x10001

take(4, "int length 0x100", checkhex="02820100")
d, dmask = take(256, "value of d")

take(3, "int length 0x81", checkhex="028181")
p, pmask = take(129, "value of p")

take(3, "int length 0x81", checkhex="028181")
q, qmask = take(129, "value of q")
int length 0x101 (for n)

value of n
0096e5d0c15710d408135a223dcf6f ... 6930000000000000001adeaf833a09
ffffffffffffffffffffffffffffff ... fff000000000000000ffffffffffff 1876/2056

int length 0x03, value of e = 65537

int length 0x100

value of d
07b15cab09d8c57b49ea14230328f4 ... 9cc862002cad5462897b9b52c13647
ffffffffffffffffffffffffffffff ... ffffffffffffffffffffffffffffff 1568/2048

int length 0x81

value of p
00000000000000000000000000001c ... 52d1982e75f30c9758e4e9e1708b8f
0000000000000000000000000000ff ... ffffffffffffffffffffffffffffff 620/1032

int length 0x81

value of q
00be1539c000000000000000000000 ... 0000000000000000baeb6b1e7ff4e7
ffffffffff00000000000000000000 ... 0000000000000000ffffffffffffff 492/1032

Unlike previous wounded key challenges covered here, this key has extra header data consistent with an RSA key generated by openssl genrsa as compared to ssh-keygen and even is missing parts of n.1

Note that the low 56 bits of all n,d,p,qn, d, p, q are intact. From this we could solve for k<ek < e where ed=kϕ+1e \cdot d = k \cdot \phi + 1 by working modulo 2562^{56}. ϕ\phi can be approximated with ϕ=(p1)(q1)g\phi = \frac{(p-1) \cdot (q-1)}{g} where g=gcd(p1,q1)g = \gcd(p-1, q-1) (with high probability) is small enough to brute force.

ed=kϕ+1ϕ=(p1)(q1)ged=k(p1)(q1)g+1edg=k(p1)(q1)+1\begin{align*} e \cdot d & = k \cdot \phi + 1 \\ \phi & = \frac{(p-1) \cdot (q-1)}{g} \\ e \cdot d & = k \cdot \frac{(p-1) \cdot (q-1)}{g} + 1 \\ e \cdot d \cdot g & = k \cdot (p-1) \cdot (q-1) + 1 \end{align*}
bits_for_k = 56
mod = 2 ** bits_for_k
def M(x):
    return x % mod

lhs = M(d * e)
rhs = M((p-1) * (q-1))
found_gk = None
for g in range(100):
    for k in range(1, e):
        if M(g * lhs) == M(k * rhs + 1):
            found_gk = (g, k)
            print(f"Found {g=} {k=}")

assert found_gk is not None
g, k = found_gk
Found g=10 k=33411

We can use the relations n=pqn = p \cdot q and edg=k(p1)(q1)+1e \cdot d \cdot g = k \cdot (p-1) \cdot (q-1) + 1 as constraints for a branch and prune approach to solve for unknown parts of n,d,p,qn, d, p, q by iteratively solving for these values with increasing modulus. We start from a trivial solution n0=d0=p0=q0=0mod20n_0 = d_0 = p_0 = q_0 = 0 \bmod 2^{0}, then using solutions mod  2i\bmod \; 2^i we can enumerate all solutions mod  2i+1\bmod \; 2^{i+1}:

  • Begin with some ni,di,pi,qin_i, d_i, p_i, q_i which satisfies the above constraints mod  2i\bmod \; 2^i
  • Consider the possible values of ni+1n_{i+1}
    • If the i+1th{i+1}^{\text{th}} bit in nn is unknown, either ni+1=nin_{i+1} = n_i or ni+1=ni+2in_{i+1} = n_i + 2^i
    • If the i+1th{i+1}^{\text{th}} bit in nn is known and set, ni+1=ni+2in_{i+1} = n_i + 2^i
    • If the i+1th{i+1}^{\text{th}} bit in nn is known and not set, ni+1=nin_{i+1} = n_i
  • The same can be said of di+1,pi+1,qi+1d_{i+1}, p_{i+1}, q_{i+1}
  • If bb bits across the four values are unknown, we now have 2b2^b possible solutions mod  2i+1\bmod \; 2^{i+1}
  • Remove any solutions which do not satisfy n=pi+1qi+1mod2i+1n = p_{i+1} \cdot q_{i+1} \mod 2^{i+1} and edi+1g=k(pi+11)(qi+11)+1mod2i+1e \cdot d_{i+1} \cdot g = k \cdot (p_{i+1}-1) \cdot (q_{i+1}-1) + 1 \mod 2^{i+1}
  • We now have some solutions ni+1,di+1,pi+1,qi+1n_{i+1}, d_{i+1}, p_{i+1}, q_{i+1} valid under mod  2i+1\bmod \; 2^{i+1}

We can analyze the low 1024 bits of the masks of n,d,p,qn, d, p, q to find that at any bit position at most two values are unknown, so at most 4 new solutions are created at each branch.

from collections import Counter

masks = [nmask, dmask, pmask, qmask]
    ([bool(m & (1 << b)) for m in masks]).count(False)
    for b in range(1024)
Counter({2: 488, 1: 348, 0: 188})

Since we have two constraints, there is roughly a 1/41/4 chance that an invalid solution passes. This means the expected number of solutions after pruning will be 1\leq 1 at each step and (with high probability) we can efficiently enumerate all solutions up to mod  21024\bmod \; 2^{1024} to reveal p,qp, q.

Branch and prune
from itertools import product
from gmpy2 import is_prime

params = {
    "n": (n, nmask),
    "d": (d, dmask),
    "p": (p, pmask),
    "q": (q, qmask)

def get_candidates(name, cur, fiddle):
    val, mask = params[name]
    if fiddle & mask:
        return [cur + (fiddle & val)]
        return [cur, cur + fiddle]

endpos = 1024
results = []
def branch_and_prune(pos, solution):
    if pos == endpos:
    fiddle = 2**pos
    mod = fiddle * 2
    candidate_solutions = product(
        *[get_candidates(name, cur, fiddle) for name, cur in zip("pqnd", solution)]

    for next_solution in candidate_solutions:
        next_p, next_q, next_n, next_d = next_solution
        if (next_p * next_q) % mod != next_n:
        if ((next_d * e - 1) * g) % mod != (k * (next_p - 1) * (next_q - 1)) % mod:
        branch_and_prune(pos + 1, next_solution)

branch_and_prune(0, (0, 0, 0, 0))

# there's two candidate d but the p/q are the same
assert results[0][:2] == results[1][:2]
p, q, n, d = results[0]
# sanity check primes
assert is_prime(p)
assert is_prime(q)
(1427102445[...]5029074831, 1334807604[...]8175631591, 1712694523[...]7682291209, 8278934094[...]8118550087)
(1427102445[...]5029074831, 1334807604[...]8175631591, 1712694523[...]7682291209, 9816359083[...]0230618695)

Finally, decrypt the flag.

from Crypto.PublicKey import RSA
from Crypto.Cipher import PKCS1_OAEP

n = p * q
phi = (p-1) * (q-1)
d = pow(e, -1, phi)

key = RSA.construct((n, e, d))
cipher =
print(cipher.decrypt(open("out.txt", "rb").read()))
b'UMDCTF{impressive_recovery!_i_forgot_to_tell_you_this_but_the_private_key_ends_with_VATE KEY-----}'

attack of the worm

the fremen are trying to sabotage the spice harvest and they need your help! spice harvesters have worm image recognition technology to know when to avoid a worm attack. luckily for you, a hacker genius got access to the pixels of the worm image, but you can only change up to 30 pixels of it. can you help the fremen destroy a spice harvester?

NOTE: the model is the same as the worm strikes back

nc 31774

Attachment:,, worm.png

11 solves, 491 points

We get a whitebox implementation for a resnet18 model with a custom dense classifier layer that outputs how “worm” the image is. We also get a fixed input image. By changing 30 pixels of the fixed image RGB data we need to make the image < 0.5 worm.

import numpy as np
from PIL import Image
import torch
import torch.nn as nn
from torchvision.models import resnet18

model = resnet18()
model.fc = nn.Linear(model.fc.in_features, 1)
model = model.cuda()

original_worm = np.array("worm.png"))
original_worm_x = torch.tensor(original_worm.transpose(2, 0, 1) / 255.0, dtype=torch.float32).unsqueeze(0).cuda()
original_worm_y = float(torch.sigmoid(model(original_worm_x)))
print(original_worm_y, original_worm_y < 0.5)
0.5788716077804565 False

Neural networks are trained by feeding it input, calculating the difference (a.k.a “loss”) between the model’s prediction and ground truth answers and using calculus to find out how each parameter in the neural network should change to minimze the loss (a.k.a “gradients”). We can extend this fancy calculus to the input data as well to “train” our input so that it produces a desired output. This process is called adversarial generation and for a more comprehensive introduction I’d recommend this writeup by Zeyu.

The challenge restricts us to editing only 30 pixels of the input image. Once we decide what set of pixels we want to change, we can run the model on the input image, calculate the loss that is minimum when the image is “not worm”, backpropagate it and only apply changes to the selected pixels.

# pipeline(image ndarray) => loss, image gradient
def pipeline(inp):
    x = torch.tensor(inp.transpose(2, 0, 1) / 255.0, dtype=torch.float32).unsqueeze(0).cuda()
    x.requires_grad = True
    loss = torch.sigmoid(model(x)).sum()
    return float(loss), x.grad[0].cpu().numpy().transpose(1, 2, 0)
assert pipeline(original_worm)[0] == original_worm_y

# optimize(image ndarray, list of pixels to allow changes, learning rate schedule)
# => loss, new image
def optimize(img, selected_pixels, lr_schedule):
    mask = np.zeros((224 * 224, 3))
    mask[selected_pixels] = np.ones(3)
    mask = mask.reshape((224, 224, 3))

    img = img.copy()
    for lr in lr_schedule:
        y, grad = pipeline(img)
        masked_grad = grad * mask # only change the selected pixels
        img = img - masked_grad * lr
        img = img.clip(0, 255)
    return y, img

To decide which pixels to adjust, a greedy approach can be used. Randomly sample a pool of “candidate pixels” and for each pixel generate an image allowing changes in this one pixel’s data. The “candidate pixel” with the largest improvement in loss means it has significant infuence on the classifier output and can be added to a pool of “unstable pixels”. More rounds of sampling and generation can be done but now allowing changes to the all previous “unstable pixels” as well as the new “candidate pixel” for each image. We terminate once 30 unstable pixels have been found and this subset of pixels is likely sufficient to generate a image which fools the classifier.

Greedy search and adversarial generation
from random import seed, randrange

# guesstimated parameters
SEED = 1116
SHORT_LR = np.logspace(4, 3, num=15)
LONG_LR = np.logspace(4, 2, num=60)
VERY_LONG_LR = np.logspace(4, 2, num=500)

not_worm = original_worm.copy()
unstable_pixels = []

while len(unstable_pixels) < 30:
    candidate_pixels = []
    for _ in range(TRIALS):
        while True:
            candidate_pixel = randrange(0, 224 * 224)
            if candidate_pixel not in unstable_pixels:
        # optimize a new image using this candidate pixel
        y, _ = optimize(not_worm, unstable_pixels + [candidate_pixel], SHORT_LR)
        candidate_pixels.append((y, candidate_pixel))

    # pick the candidate pixel with best loss
    _, next_pixel = min(candidate_pixels)

    # optimize the current not_worm image with the current list of unstable pixels
    y, not_worm = optimize(not_worm, unstable_pixels, LONG_LR)
    print(f"Step {len(unstable_pixels): >2}: next_pixel = {next_pixel: >5} y = {y:.4f}")

# final optimizations with slow learning rate annealing
y, not_worm = optimize(not_worm, unstable_pixels, VERY_LONG_LR)
print(f"Final y = {y:.4f}")
assert y < 0.5

# make sure the image still classifies properly when rounded to u8
not_worm_uint8 = not_worm.astype(np.uint8)
y = pipeline(not_worm_uint8)[0]
print(f"u8 image y = {y:.4f}")
assert y < 0.5
Step  1: next_pixel = 39814 y = 0.5681
Step  2: next_pixel = 31882 y = 0.5622
Step  3: next_pixel = 34264 y = 0.5553
Step  4: next_pixel =  9103 y = 0.5493
Step 21: next_pixel =  2242 y = 0.5007
Step 22: next_pixel = 23979 y = 0.4977
Step 23: next_pixel = 45967 y = 0.4963
Step 24: next_pixel =  6436 y = 0.4964
Step 25: next_pixel = 43330 y = 0.4935
Step 29: next_pixel = 10952 y = 0.4878
Step 30: next_pixel = 21210 y = 0.4863
Final y = 0.4850
u8 image y = 0.4851

We can send the final image to the server to claim the flag.

Payload generation and interaction
from pwn import remote
from subprocess import check_output

changed = np.where((not_worm_uint8 - original_worm))
changed_px = list(sorted(set(zip(changed[0], changed[1]))))
assert len(changed_px) <= 30

payload = []
for y, x in changed_px:
    r, g, b = not_worm_uint8[y, x]
    packet = f"{x},{y},{r},{g},{b}"
payload = ";".join(payload)

# my ml environment's LD_PRELOAD messes with curl :smiling_face_with_tear:
!wget -O -q

io = remote("", 31774)
pow_chal = io.recvline().strip()
pow_chal = pow_chal.replace(b"curl -sSfL", b"cat")
pow_result = check_output(pow_chal, shell=True)
solution: Enter a list of pixels to change, in the format 'x,y,r,g,b;x,y,r,g,b;...':

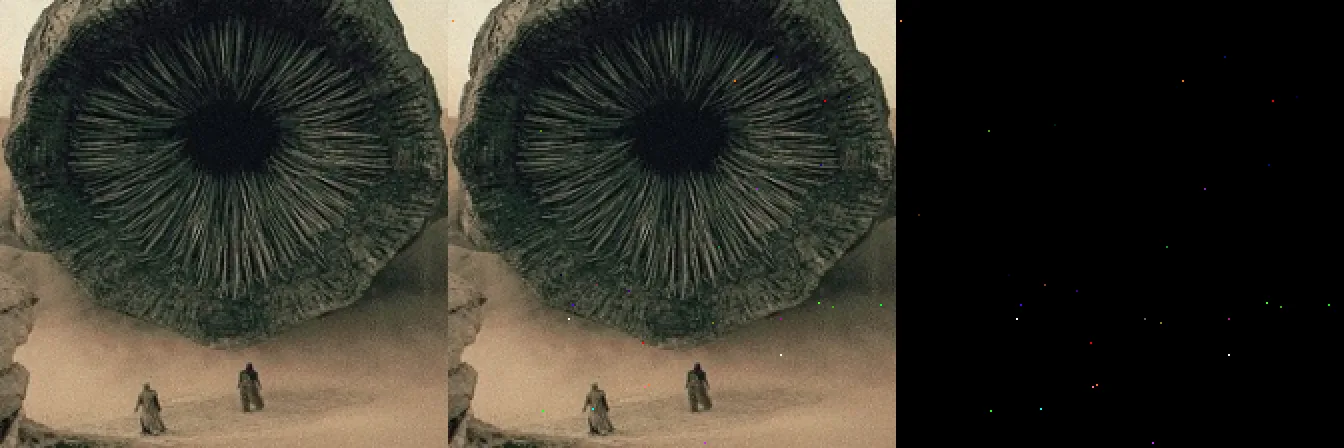

worm notworm and diff

the worm strikes back

once again, the fremen are trying to sabotage the spice harvest and need you to fool the spice harvester’s worm image recognition! this time though, you need to generate a 40x40 patch to add to the image.

NOTE: the model is the same as attack of the worm

nc 31775


1 solve, 499 points

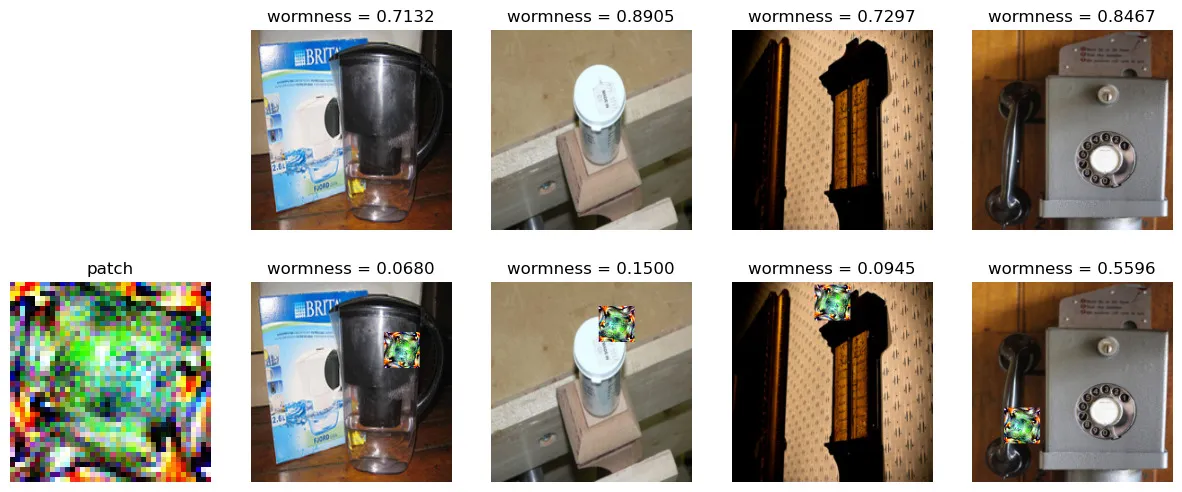

We now need to generate an adversarial patch that is 40 by 40 pixels in size. When applied to a hidden corpus of test images, it should force a prediction of “not worm” on the classifier nerual network.

Several implementations of the famous adversarial patch paper are available for reference but they won’t work out of the box with the challenge, not to mention that the pool of test images is unknown. Though it is not optimal we can use a corpus of imagenet training images to train the patch with and try to re-implement the paper.

Get training data
from glob import glob
from random import sample

!git clone

impaths = glob("./imagenet-sample-images/*.JPEG")
def get_batch():
    batch = []
    for impath in sample(impaths, k=BATCHSIZE):
        img ="RGB")
        img = T.Resize(size=(224, 224))(img)
        img = T.ToTensor()(img)
    batch = torch.stack(batch)
    batch = batch.cuda()
    return batch

According to the paper and the reference implementations I found, the steps needed to make an adversarial patch is to:

  1. Initialize a patch made of random noise
  2. Pick an image that does not classify to the desired results
  3. Pick a random location (transformation) that decides where the patch should be overlayed on top of the input image
  4. Apply the patch to the image with the selected location
  5. Calculate model outputs and a loss that is minimum when the desired class is produced
  6. Backpropagate the loss to the patch and adjust the patch image
  7. Repeat (4-6) until the image with patch applied is classified to our target or a maximum number of iterations is reached
    • Note that the image from (2) and the transformation from (3) is reused
  8. Repeat (2-7) with different images and transformations until the patch is effective

I made some adjustments to these steps for my solution:

  • For each iteration of (2-7), a batch of 50 images2 instead of a single image was used for speedup and no exclusion of correctly classified images was done. The same transformation was applied to all images in the batch. This also required me to set model.train(False) when loading the model to disable the resnet18’s normalization layers.
  • The loss function selected was relu(model(x) + 0.05) without using any sigmoid function. Images that are “worm” 0 < pred and “barely not worm” -0.05 < pred < 0 will have nonzero loss and propagate changes to the patch. Meanwhile, images that are “confidently not worm” pred < -0.05 will have zero loss because of how the ReLU function works and will not propagate changes to the patch.
Solver setup
import numpy as np
from PIL import Image
import torch
import torch.nn as nn
from torchvision.models import resnet18
import torchvision.transforms as T

model = resnet18()
model.fc = nn.Linear(model.fc.in_features, 1)
model = model.train(False) # !!! disable batchnorm!
model = model.cuda()

def generate_mask():
    rotation_angle = np.random.choice(4)
    x_location, y_location = np.random.randint(low=0, high=224-40), np.random.randint(low=0, high=224-40)

    def apply(patch):
        patch = patch.copy()
        for i in range(3):
            patch[i] = np.rot90(patch[i], rotation_angle)
        applied = np.zeros((3, 224, 224))
        applied[:, x_location:x_location+40, y_location:y_location+40] = patch

        mask = applied.copy()
        mask[mask != 0] = 1.0

        return applied, mask

    def unapply(applied):
        patch = applied[:, x_location:x_location+40, y_location:y_location+40]
        patch = patch.copy()
        for i in range(3):
            patch[i] = np.rot90(patch[i], 4 - rotation_angle)
        return patch

    return apply, unapply
Adversarial patch training
import torch.nn.functional as F
from matplotlib import pyplot as plt
from IPython.display import display
from import tqdm

# guesstimated parameters
RELU_EPS = 0.05
LR_SCHEDULE = np.logspace(1, -1, num=EPOCHS) # logarithmic decay

# 1. Initialize a patch made of random noise
patch = np.random.rand(3, 40, 40)
patch = patch.clip(1/255, 1)

# visualiser setup
pbar = tqdm(enumerate(LR_SCHEDULE), total=EPOCHS)
loss_log = np.zeros([EPOCHS * MAX_REPS_PER_EPOCH])
global_rep = 0
fig, ax = plt.subplots(figsize=(10, 3))
dh = display(fig, display_id=True)

for epoch, lr in pbar:
    # 2. Pick **50 images** regardless of its original output
    batch = get_batch()

    # 3. Fix a random location (transformation) that decides where the patch should
    #    be overlayed on top of the input images
    apply, unapply = generate_mask()

    for rep in range(MAX_REPS_PER_EPOCH):
        # 4. Apply the patch to the images at the fixed location
        applied, mask = apply(patch)
        applied = torch.from_numpy(applied).float().cuda()
        mask = torch.from_numpy(mask).float().cuda()
        applied.requires_grad = True
        applied_batch = batch * (1 - mask) + (applied * mask)

        # 5. Calculate model outputs ...
        preds = model(applied_batch)
        # ... and a loss that is minimum when the desired class is produced
        preds_rectified = F.relu(preds + RELU_EPS)
        loss = preds_rectified.sum() / BATCHSIZE

        # visualiser
        loss_log[global_rep] = float(loss)
        global_rep += 1

        if loss < EARLY_END_EPS:
            # Early stop because loss is low and images in this batch generally
            # look like "not worm"

        # 6. Backpropagate the loss to the patch and adjust the patch image data
        pbar.set_description(f"epoch = {epoch: >2}, rep = {rep: >3} loss = {loss:.4f}")
        grad = unapply(applied.grad.cpu().numpy())
        patch += grad * lr
        patch = patch.clip(1/255, 1)

    # visualiser

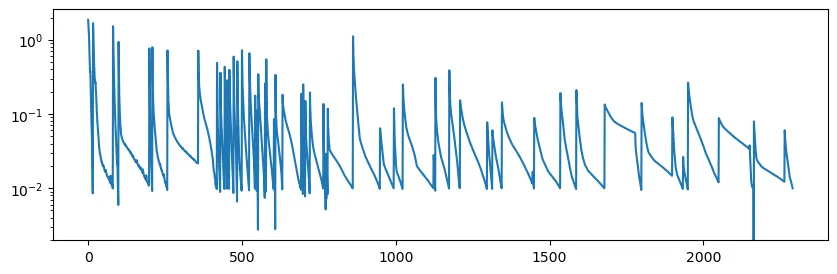

Patch training loss


Claim flag
import base64
from pwn import remote, context
from subprocess import check_output

patch_np = (patch.transpose(1, 2, 0) * 255).astype(np.uint8)
patch_buf = patch_np.tobytes()
patch_b64 = base64.standard_b64encode(patch_buf)

# my ml environment's LD_PRELOAD messes with curl :smiling_face_with_tear:
!wget -O -q

context.log_level = "error"
for _ in range(20): # might be unlucky with transformations; try multiple times
        io = remote("", 31775)
        pow_chal = io.recvline().strip()
        pow_chal = pow_chal.replace(b"curl -sSfL", b"cat")
        pow_result = check_output(pow_chal, shell=True)
    except EOFError:
solution: Enter a base64 encoded 40x40 image patch.


  1. Ooh spicy

  2. As many as could fit on my GPU
