SECCON CTF 2022 Crypto Writeups
Changelog (last updated 2022-11-20)
Update 2022-11-20: Added inequality-CVP solution for this_is_not_lsb along with some typos.
janken vs kurenaif
By theoremoon
Do you know about the crypto witch? And about a her special cast too?
nc janken-vs-kurenaif.seccon.games 8080
Attachments: server.py
17 solves, 221 points
Challenge problem.py
import os import signal import random import secrets FLAG = os.getenv("FLAG", "fake{cast a special spell}") def janken(a, b): return (a - b + 3) % 3 signal.alarm(1000) print("kurenaif: Hi, I'm a crypto witch. Let's a spell battle with me.") witch_spell = secrets.token_hex(16) witch_rand = random.Random() witch_rand.seed(int(witch_spell, 16)) print(f"kurenaif: My spell is {witch_spell}. What about your spell?") your_spell = input("your spell: ") your_random = random.Random() your_random.seed(int(your_spell, 16)) for _ in range(666): witch_hand = witch_rand.randint(0, 2) your_hand = your_random.randint(0, 2) if janken(your_hand, witch_hand) != 1: print("kurenaif: Could you come here the day before yesterday?") quit() print("kurenaif: Amazing! Your spell is very powerful!!") print(f"kurenaif: OK. The flag is here. {FLAG}")
The challenge server seeds a python PRNG witch_rand
and publishes the key,
then asks for a user seed for another PRNG your_random
. The two PRNGs then
play rock-paper-scissors against each other. Our PRNG needs to play winning
moves 666 times in a row to get the flag.
Since we know the witch_rand
seed, first predict the 666 witch_rand
results
by making a copy of the PRNG on our local machine and then calculate what are
the winning hands that your_random
needs to produce.
Simulate PRNG locally
import random from pwn import * context.log_level = "error" r = remote("janken-vs-kurenaif.seccon.games", 8080) r.recvuntil(b"My spell is ") witch_spell = r.recvuntil(b".")[:-1].decode() witch_rand = random.Random() witch_rand.seed(int(witch_spell, 16)) witch_hands = [] your_hands = [] for _ in range(666): witch_hand = witch_rand.randint(0, 2) your_hand = (witch_hand + 1) % 3 witch_hands.append(witch_hand) your_hands.append(your_hand) print(f"{witch_hands[:10] = }") print(f"{your_hands[:10] = }")
witch_hands[:10] = [2, 1, 1, 2, 1, 0, 1, 2, 0, 2] your_hands[:10] = [0, 2, 2, 0, 2, 1, 2, 0, 1, 0]
To understand more about how the rock-paper-scissors plays are generated, we can read the CPython random.py source code. The call stack looks like:
- The script uses
Random.randint(0, 2)
- … which calls
Random.randrange(0, 3)
- … which calls
Random._randbelow(3)
- … which points to
Random._randbelow_with_getrandbits(3)
- … which calls
Random.getrandbits(2)
- … which calls into C implementation
_random_Random_getrandbits_impl()
Random.getrandbits(2)
generates a 32 bit output from the PRNG and only returns
the highest 2 bits, while Random._randbelow_with_getrandbits(3)
will keep
generating until Random.getrandbits(2)
returns something strictly less than 3.
To produce the winning your_random
hands, we want to find a seed that will
generate the right values in the highest 2 bits of each PRNG output.
Since we know our desired PRNG outputs, a symbolic Mersenne Twister cracker can be used to obtain a valid PRNG state that produces these outputs. Modifications to this reference implementation were made to recover the PRNG state immediately after seeding instead of the state after the outputs are generated.
Solve for PRNG state
# !wget https://raw.githubusercontent.com/icemonster/symbolic_mersenne_cracker/main/main.py -O untwister.py from untwister import Untwister as _Untwister import logging logging.disable() # Superclass Untwister to obtain PRNG state after seeding # instead of PRNG state after outputs generated class Untwister(_Untwister): def __init__(self): super().__init__() self.first_MT = self.MT # https://github.com/python/cpython/blob/main/Modules/_randommodule.c#L201 # Index is 624 after seeding self.index = 624 def get_random(self): # https://github.com/python/cpython/blob/main/Modules/_randommodule.c#L232 # First MT state is set to 0x80000000 after seeding self.solver.add(self.first_MT[0] == 0x80000000) print(self.solver.check()) model = self.solver.model() state = [ model[x].as_long() if model[x] is not None else 0 for x in self.first_MT ] result_state = (3, tuple(state+[624]), None) rand = random.Random() rand.setstate(result_state) return rand ut = Untwister() for your_hand in your_hands: res = bin(your_hand)[2:].zfill(2) + "?" * 30 ut.submit(res) ut_rand = ut.get_random() ut_rand_state = ut_rand.getstate()[1][:-1] # sanity check for your_hand in your_hands: assert your_hand == ut_rand.randint(0, 2)
sat
Though we have a valid PRNG state that can generate winning outputs, we need to send the server a seed value that will create this state. We can study how PRNG seeding works again with some source code review:
- The script uses
Random.seed(seed)
- … which calls into C implementation
random_seed(seed)
- … which calls
init_by_array(seed)
- … which does a bunch of math
For seeds that are python long
arbitrary precision integers, the C function
init_by_array(init_key)
accepts the long
represented as an array of 32-bit
unsigned integers init_key
with the least significant 32-bit integer coming
first, then loops through them with some XORs and multiplications to create the
initial PRNG state. We can re-implement init_by_array(init_key)
in python and
use z3 to solve for a valid init_key
that is 624 32-bit unsigned integers long
and produces the desired PRNG state. Finally we can submit this seed to the
challenge server to get flag.
Solve for PRNG seed
from z3 import * prng_N = 624 def u32(x): return x & 0xffffffff # Note that LShR is used instead of ">>" operator # unsigned 32 bit integers use logical bitshift, not arithmetic bitshift. # https://github.com/python/cpython/blob/main/Modules/_randommodule.c#L186 def init_genrand(s): mt = [0 for _ in range(prng_N)] mt[0] = BitVecVal(s, 32) mti = 1 while mti < prng_N: mt[mti] = u32( 1812433253 * (mt[mti-1] ^ LShR(mt[mti-1], 30)) + mti # 1812433253 * (mt[mti-1] ^ (mt[mti-1] >> 30)) + mti ) mti += 1 return mt, mti # https://github.com/python/cpython/blob/main/Modules/_randommodule.c#L209 def init_by_array(init_key): key_length = len(init_key) mt, mti = init_genrand(19650218) i, j = 1, 0 k = prng_N if prng_N > key_length else key_length while k: mt[i] = u32( (mt[i] ^ ((mt[i-1] ^ LShR(mt[i-1], 30)) * 1664525)) + init_key[j] + j ) i, j = i + 1, j + 1 if i >= prng_N: mt[0] = mt[prng_N-1] i = 1 if j >= key_length: j = 0 k -= 1 k = prng_N - 1 while k: mt[i] = u32( (mt[i] ^ ((mt[i-1] ^ LShR(mt[i-1], 30)) * 1566083941)) - i ) i += 1 if i >= prng_N: mt[0] = mt[prng_N-1] i = 1 k -= 1 mt[0] = 0x80000000; return mt seed_vars = [ BitVec(f"seed_{i}", 32) for i in range(624) ] seed_rand_state = init_by_array(seed_vars) s = Solver() for a, b in zip(seed_rand_state, ut_rand_state): s.add(a == b) print(s.check()) model = s.model() seed_init_key = [ model[x].as_long() if model[x] is not None else 0 for x in seed_vars ] print(f"{seed_init_key[:10] = }")
sat seed_init_key[:10] = [2785066542, 4109823319, 1943818831, 195508595, 4046365112, 359652855, 2071527069, 3612262978, 2265693527, 3400945710]
Convert seed and claim flag
seed_rand_seed = sum([x * (2 ** (idx * 32))for idx, x in enumerate(seed_init_key)]) print("seed_rand_seed =", str(seed_rand_seed)[:50], "...") seed_rand = random.Random() seed_rand.seed(seed_rand_seed) # sanity check assert seed_rand.getstate()[1][:-1] == ut_rand_state for your_hand in your_hands: assert your_hand == seed_rand.randint(0, 2) r.sendline(f"{hex(seed_rand_seed)[2:]}".encode()) print(r.recvall().decode())
seed_rand_seed = 47391526757246540556852465962283917972958287802376 ... What about your spell? your spell: kurenaif: Amazing! Your spell is very powerful!! kurenaif: OK. The flag is here. SECCON{https://youtu.be/h0GSFxoRhrc}
witches_symmetric_exam
By kurenaif
crypto witch made a exam. The exam has to communicate with witch and saying secret spell correctly. Have fun ;)
nc witches-symmetric-exam.seccon.games 8080
Attachments: problem.py
22 solves, 197 points
Challenge problem.py
from Crypto.Cipher import AES from Crypto.Random import get_random_bytes from Crypto.Util.Padding import pad, unpad from flag import flag, secret_spell key = get_random_bytes(16) nonce = get_random_bytes(16) def encrypt(): data = secret_spell gcm_cipher = AES.new(key, AES.MODE_GCM, nonce=nonce) gcm_ciphertext, gcm_tag = gcm_cipher.encrypt_and_digest(data) ofb_input = pad(gcm_tag + gcm_cipher.nonce + gcm_ciphertext, 16) ofb_iv = get_random_bytes(16) ofb_cipher = AES.new(key, AES.MODE_OFB, iv=ofb_iv) ciphertext = ofb_cipher.encrypt(ofb_input) return ofb_iv + ciphertext def decrypt(data): ofb_iv = data[:16] ofb_ciphertext = data[16:] ofb_cipher = AES.new(key, AES.MODE_OFB, iv=ofb_iv) try: m = ofb_cipher.decrypt(ofb_ciphertext) temp = unpad(m, 16) except: return b"ofb error" try: gcm_tag = temp[:16] gcm_nonce = temp[16:32] gcm_ciphertext = temp[32:] gcm_cipher = AES.new(key, AES.MODE_GCM, nonce=gcm_nonce) plaintext = gcm_cipher.decrypt_and_verify(gcm_ciphertext, gcm_tag) except: return b"gcm error" if b"give me key" == plaintext: your_spell = input("ok, please say secret spell:").encode() if your_spell == secret_spell: return flag else: return b"Try Harder" return b"ok" print(f"ciphertext: {encrypt().hex()}") while True: c = input("ciphertext: ") print(decrypt(bytes.fromhex(c)))
The server uses two AES-OFB and AES-GCM ciphers in series with the same key to encrypt some secret text and users can query decryption on some data. Different output is returned if padding errors or GCM tag verification errors are found, which points towards an AES padding oracle.
Get parameters
from pwn import * context.log_level = "error" r = remote("witches-symmetric-exam.seccon.games", 8080) r.recvuntil(b"ciphertext: ") enc = bytes.fromhex(r.recvline().decode()) print(f"{len(enc) = }") print(f"{enc.hex() = }")
len(enc) = 80 enc.hex() = 'eba5836c9b1b7892a39cd7031fd5d89d0f8b66e0e00447aec9d9ffcceaa11b6a3b95fc35580fc578b90b186a8948391beca9c91e538a8d4d3d53eb3dd8404c27f2b8eafa5add251eb1bfd41a32aa38fd'
AES-OFB decrypts one block of ciphertext ct
with initiation vector iv
by
doing pt = unpad(enc<key>(iv) ^ ct)
and prouduces different results if unpad
succeeds or fails. This is effectively an AES-ECB encryption oracle as we can
adjust the tail bytes of ct
until unpad
succeeds, thus finding enc<key>(iv) = expected_padding ^ ct
.
Decryption oracle routines
def bxor(*args): if len(args) == 1: return args[0] a, b = args[0], args[1:] return bytes([i ^ j for i, j in zip(a, bxor(*b))]) def query(xs): r.sendline("\n".join([x.hex() for x in xs]).encode()) ress = [] for _ in xs: r.recvuntil(b"ciphertext: ") res = r.recv(5).strip().decode() if "b'ofb" in res: ress.append("pad") elif "b'gcm" in res: ress.append("gcm") elif "o', p" in res: ress.append("spell") elif "b'ok'" in res: ress.append("ok") else: raise ValueError(res) return ress def leak_enc(pln): enc = [0 for _ in range(16)] for pos in range(16): print(".", end="", flush=True) expected_padding = ([0] * 16 + [pos+1] * (pos+1))[-16:] found = [] probe = [0] * 16 xs = [] for i in range(256): probe[15-pos] = i try_block_ofb = pln + bxor(enc, expected_padding, probe) xs.append(try_block_ofb) ress = query(xs) for i, res in enumerate(ress): if res == "gcm": found.append(i) if len(found) != 1: raise ValueError("???", pos, found) enc[15-pos] = found[0] print() return bytes(enc)
To decrypt the OFB phase, leak enc<key>(iv)
, then enc<key>(enc<key>(iv))
and
so on to get the whole AES-OFB cipher stream that the plaintext is XOR-ed with.
We can verify that the decryption is correct by checking for valid padding on
gcm_enc
.
Decrypt OFB
from Crypto.Util.Padding import unpad ofb_iv = enc[:16] ofb_enc = enc[16:] print(f"{ofb_iv.hex() = }") ofb_stream = ofb_iv for block in range(4): ofb_stream += leak_enc(ofb_stream[-16:]) ofb_stream = ofb_stream[16:] print(f"{ofb_stream.hex() = }") ofb_dec = bxor(ofb_enc, ofb_stream) gcm_tag, gcm_nonce, gcm_enc = ofb_dec[:16], ofb_dec[16:32], unpad(ofb_dec[32:], 16) print(f"{gcm_tag.hex() = }") print(f"{gcm_nonce.hex() = }") print(f"{gcm_enc.hex() = }")
ofb_iv.hex() = 'eba5836c9b1b7892a39cd7031fd5d89d' ................ ................ ................ ................ ofb_stream.hex() = '23fdad43a2f057a7d2b7796e90bc05c2e60823306dfb1f139117cc63738a05f2c6e2511b07e4ed91f2841066f453217886601ef80387309bb9b7dc123aa230f5' gcm_tag.hex() = '2c76cba342f410091b6e86a27a1d1ea8' gcm_nonce.hex() = 'dd9ddf0535f4da6b281cd409fac23ce9' gcm_enc.hex() = '2a4b9805546e60dccfd7fb5b2c136d5f74d8f402595a1585'
It turns out that this encryption oracle is also sufficient to break AES-GCM encryption and decryption because internally these operations only require AES-ECB encryption!
We can derive the parameters h0
and j0
of the AES-GCM cipher using the
encryption oracle. These parameters are used to calculate the nonce for the
internal AES-CTR cipher stream and are also used for the AES-GCM tag generation.
Referring to pycryptodome
source
helped a lot for this step.
GCM parameters
from Crypto.Util.number import long_to_bytes, bytes_to_long from Crypto.Cipher._mode_gcm import _GHASH as GHASH, _ghash_clmul as ghash_c # https://github.com/Legrandin/pycryptodome/blob/master/lib/Crypto/Cipher/_mode_gcm.py#L223-L226 h0 = leak_enc(b"\x00" * 16) print(f"{h0.hex() = }") # https://github.com/Legrandin/pycryptodome/blob/master/lib/Crypto/Cipher/_mode_gcm.py#L232-L236 nonce = gcm_nonce fill = (16 - (len(nonce) % 16)) % 16 + 8 ghash_in = (nonce + b'\x00' * fill + long_to_bytes(8 * len(nonce), 8)) j0 = GHASH(h0, ghash_c).update(ghash_in).digest() print(f"{j0.hex() = }")
................ h0.hex() = 'dee52a0c81a9ed9e2645c2453ea2131b' j0.hex() = '991ef958aa7192caa6b5b2f7754743f5'
We can obtain the internal AES-CTR cipher stream by simulating the counter
increment and leaking enc<key>(j0+1)
and enc<key>(j0+2)
. We can then decrypt
the secret_spell
string by XOR-ing with this cipher stream.
Decrypt GCM
# https://github.com/Legrandin/pycryptodome/blob/master/lib/Crypto/Cipher/_mode_gcm.py#L239-L245 # nonce_ctr = j0[:12] # iv_ctr = (bytes_to_long(j0) + 1) & 0xFFFFFFFF # nonce_iv_bytes = nonce_ctr + bytes.fromhex(hex(iv_ctr)[2:].zfill(8)) block_one_ctr = bytes.fromhex(hex(int(j0.hex(), 16) + 1)[2:]) block_two_ctr = bytes.fromhex(hex(int(j0.hex(), 16) + 2)[2:]) gcm_stream = leak_enc(block_one_ctr) + leak_enc(block_two_ctr) gcm_pln = bxor(gcm_stream, gcm_enc) secret_spell = gcm_pln print(f"{secret_spell = }")
................ ................ secret_spell = b'decrypt_all!!277260221!!'
Finally to claim the flag we need to encrypt and sign the message "give me key"
. We can reuse the previous nonces and IVs which means the cipher streams
stay the same, so encryption will just involve XOR-ing the message with streams
in the right order. A valid tag can be generated by processing the GHASH locally
and XOR-ing with enc<key>(j0)
. This lets us claim the flag.
Claim flag
from Crypto.Util.Padding import pad signer = GHASH(h0, ghash_c) token_dec = b"give me key" # https://github.com/Legrandin/pycryptodome/blob/master/lib/Crypto/Cipher/_mode_gcm.py#L372-L379 # > encrypt and digest > encrypt token_enc = bxor(token_dec, gcm_stream) msg_len = len(token_enc) # signer.update(token_enc) # defer to later for block alignment # https://github.com/Legrandin/pycryptodome/blob/master/lib/Crypto/Cipher/_mode_gcm.py#L459-L462 # > encrypt and digest > digest signer.update(token_enc + b"\x00" * (16 - msg_len)) signer.update(long_to_bytes(8 * 0, 8) + long_to_bytes(8 * msg_len, 8)) tag_dec = signer.digest() # https://github.com/Legrandin/pycryptodome/blob/master/lib/Crypto/Cipher/_mode_gcm.py#L465 # > encrypt and digest > digest > self._tag_cipher.encrypt j0_stream = leak_enc(j0) tag_enc = bxor(tag_dec, j0_stream) print(f"{tag_enc.hex() = }") payload = ofb_iv + bxor(pad(tag_enc + gcm_nonce + token_enc, 16), ofb_stream) print(f"{payload.hex() = }") r.sendline(payload.hex().encode()) r.sendline(secret_spell) flag = r.recvuntil(b"}").decode().strip() print(flag)
................ tag_enc.hex() = '76c2626da50248e3cc8dea847f7dc442' payload.hex() = 'eba5836c9b1b7892a39cd7031fd5d89d553fcf2e07f21f441e3a93eaefc1c1803b95fc35580fc578b90b186a8948391befa5dc090a979c32375afe63f156247d' error' ciphertext: ok, please say secret spell:b'SECCON{you_solved_this!?I_g1ve_y0u_symmetr1c_cipher_mage_certificate}
insufficient
By Xornet
SUGOI SECRET SHARING SCHEME with insufficient shares
Attachments: dist.tar.gz
33 solves, 164 points
Challenge problem.py
from random import randint from Crypto.Util.number import getPrime, bytes_to_long from secret import FLAG # f(x,y,z) = a1*x + a2*x^2 + a3*x^3 # + b1*y + b2*y^2 + b3*y^3 # + c*z + s mod p def calc_f(coeffs, x, y, z, p): ret = 0 ret += x * coeffs[0] + pow(x, 2, p) * coeffs[1] + pow(x, 3, p)*coeffs[2] ret += y * coeffs[3] + pow(y, 2, p) * coeffs[4] + pow(y, 3, p)*coeffs[5] ret += z * coeffs[6] ret += coeffs[7] return ret % p p = getPrime(512) # [a1, a2, a3, b1, b2, b3, c, s] coeffs = [randint(0, 2**128) for _ in range(8)] key = 0 for coeff in coeffs: key <<= 128 key ^= coeff cipher_text = bytes_to_long(FLAG) ^ key print(cipher_text) shares = [] for _ in range(4): x = randint(0, p) y = randint(0, p) z = randint(0, 2**128) w = calc_f(coeffs, x, y, z, p) packed_share = ((x,y), w) shares.append(packed_share) print(p) print(shares)
128-bit coeffs
to / to / / are generated on
the server and are kept secret and are needed to recover the flag. A 512-bit
prime is published and 4 shares are calculated where and . We are given , and the result of calc_f
for each share.
# challenge problem.py # f(x,y,z) = a1*x + a2*x^2 + a3*x^3 # + b1*y + b2*y^2 + b3*y^3 # + c*z + s mod p def calc_f(coeffs, x, y, z, p): ret = 0 ret += x * coeffs[0] + pow(x, 2, p) * coeffs[1] + pow(x, 3, p)*coeffs[2] ret += y * coeffs[3] + pow(y, 2, p) * coeffs[4] + pow(y, 3, p)*coeffs[5] ret += z * coeffs[6] ret += coeffs[7] return ret % p
Expand parameters
ct = 115139400156559163067983730101733651044517302092738415230761576068368627143021367186957088381449359016008152481518188727055259259438853550911696408473202582626669824350180493062986420292176306828782792330214492239993109523633165689080824380627230327245751549253757852668981573771168683865251547238022125676591 p = 8200291410122039687250292442109878676753589397818032770561720051299309477271228768886216860911120846659270343793701939593802424969673253182414886645533851 shares = [ ((6086926015098867242735222866983726204461220951103360009696454681019399690511733951569533187634005519163004817081362909518890288475814570715924211956186561, 180544606207615749673679003486920396349643373592065733048594170223181990080540522443341611038923128944258091068067227964575144365802736335177084131200721), 358596622670209028757821020375422468786000283337112662091012759053764980353656144756495576189654506534688021724133853284750462313294554223173599545023200), ((1386358358863317578119640490115732907593775890728347365516358215967843845703994105707232051642221482563536659365469364255206757315665759154598917141827974, 4056544903690651970564657683645824587566358589111269611317182863269566520886711060942678307985575546879523617067909465838713131842847785502375410189119098), 7987498083862441578197078091675653094495875014017487290616050579537158854070043336559221536943501617079375762641137734054184462590583526782938983347248670), ((656537687734778409273502324331707970697362050871244803755641285452940994603617400730910858122669191686993796208644537023001462145198921682454359699163851, 7168506530157948082373212337047037955782714850395068869680326068416218527056283262697351993204957096383236610668826321537260018440150283660410281255549702), 1047085825033120721880384312942308021912742666478829834943737959325181775143075576517355925753610902886229818331095595005460339857743811544053574078662507), ((5258797924027715460925283932681628978641108698338452367217155856384763787158334845391544834908979711067046042420593321638221507208614929195171831766268954, 4425317882205634741873988391516678208287005927456949928854593454650522868601946818897817646576217811686765487183061848994765729348913592238613989095356071), 866086803634294445156445022661535120113351818468169243952864826652249446764789342099913962106165135623940932785868082548653702309009757035399759882130676) ] F = Zmod(p) share_xxxyyy = [ [ ZZ(i) for i in [F(x), F(x) ^ 2, F(x) ^ 3, F(y), F(y) ^ 2, F(y) ^ 3]] for (x, y), _ in shares ] share_w = [w for _, w in shares]
Since we know and , we can calculate the corresponding /// values and try to model this as a closest vector problem:
A factor of is added to the part of the lattice generating to to make their residuals in the same order of magnitude as the expected 256-bit residuals of .
For a closest vector generated by to reference vector , differs from in to by its term, while the later terms will be near to to . and can then be recovered by taking the GCD of differences between residues, obtaining all the data required to recover the flag.
Solve CVP
# https://jgeralnik.github.io/writeups/2021/08/12/Lattices/ def closest_vector(B, target): # Babai's Nearest Plane algorithm M = B.LLL() G = M.gram_schmidt()[0] small = target for _ in range(1): for i in reversed(range(M.nrows())): c = ((small * G[i]) / (G[i] * G[i])).round() small -= M[i] * c return target - small r, c = 11, 11 two_127 = 2 ^ 127 two_128 = 2 ^ 128 large = 2 ^ 1024 mat = [ [0 for _ in range(c)] for _ in range(r) ] vec = [ 0 for _ in range(c) ] for coeff_i in range(6): for share_i in range(4): mat[coeff_i][share_i] = share_xxxyyy[share_i][coeff_i] mat[coeff_i][4 + coeff_i] = two_128 vec[coeff_i] = two_127 * two_128 for share_i in range(4): mat[6 + share_i][share_i] = p mat[10][share_i] = - shares[share_i][1] mat[10][10] = large vec[10] = large mat = Matrix(ZZ, mat) vec = vector(vec) cv = closest_vector(mat, vec) assert cv[10] == large for idx, cvi in enumerate(cv): print(f"cv[{idx}] = {cvi}")
cv[0] = -73127182509659574936304130186390232855613411712618127387302114362808513444038 cv[1] = -21323554641234012731873431347941675841849210679985598800027345190229736374864 cv[2] = -95332596761823814479686618419564498660798012792472282519243854651578178909353 cv[3] = -65202559187559307765157064732030011588113460469631415668829640873318085305823 cv[4] = 108872274582080884429104542718114951764799087578511053878950064648738360524800 cv[5] = 51808446279407138673963965459500483574659336067433398358542736292199876526080 cv[6] = 46874495483872404296318603859111203660545082957551217054277798423995804024832 cv[7] = 114770789402085722865307263932237123446182777168313585667126867879815270105088 cv[8] = 51217024666795342916098068957979173083931580539085821138892284370538977034240 cv[9] = 9527304801756674193386489592332566492258743922045146824371698689838183088128 cv[10] = 179769313486231590772930519078902473361797[...]10684586298239947245938479716304835356329624224137216
Calculate coeffs
coeffs_6 = [ i // two_128 for i in cv[4:10] ] czs = [ (w - sum([a * b for a, b in zip(xxxyyyy, coeffs_6)])) % p for xxxyyyy, w in zip(share_xxxyyy, share_w) ] c6 = gcd(czs[1] - czs[0], czs[2] - czs[0]) c7 = czs[0] % c6 coeffs = [*coeffs_6, c6, c7] for idx, coeff_i in enumerate(coeffs): print(f"coeffs[{idx}] = {coeff_i}")
coeffs[0] = 319946859331022505606006682830489529550 coeffs[1] = 152251339815807627609342474617581741055 coeffs[2] = 137751761597342098624908697775689190697 coeffs[3] = 337281036453915579622200616302875159873 coeffs[4] = 150513307904359194457545638585602396040 coeffs[5] = 27998232432567560780529247469815955088 coeffs[6] = 285109170934241472003856820431690507519 coeffs[7] = 86246982746739283466217140132251503442
Claim flag
key = 0 for coeff in coeffs: key <<= 128 key = key ^^ coeff flag = ct ^^ key bytes.fromhex(hex(flag)[2:])
b'SECCON{Unfortunately_I_could_not_come_up_with_a_more_difficult_problem_than_last_year_sorry...-6fc18307d3ed2e7673a249abc2e0e22c}'
this_is_not_lsb
By kurenaif
Tired of difficult problems? Ok, I give you a simple LSB Padding Oracle problem. Ah, my magic has exploded… Sorry
nc this-is-not-lsb.seccon.games 8080
Attachments: problem.py
34 solves, 162 points
Challenge problem.py
from Crypto.Util.number import * from flag import flag p = getStrongPrime(512) q = getStrongPrime(512) e = 65537 n = p * q phi = (p - 1) * (q - 1) d = pow(e, -1, phi) print(f"n = {n}") print(f"e = {e}") print(f"flag_length = {flag.bit_length()}") # Oops! encrypt without padding! c = pow(flag, e, n) print(f"c = {c}") # padding format: 0b0011111111........ def check_padding(c): padding_pos = n.bit_length() - 2 m = pow(c, d, n) return (m >> (padding_pos - 8)) == 0xFF while True: c = int(input("c = ")) print(check_padding(c))
The server gives us a RSA public key parameters and the encryption c
of flag
without padding, and a decryption oracle which reveals if the decryption is
between 0b0011111111000...
and 0b0011111111111...
; let us call this
and . Because of RSA
homomorpism
where multiplication of ciphertexts is equivalent to multiplication plaintexts,
we can make queries in the form which will decrypt to
and tells us if this decryption result is in the
oracle’s interval.
From the the SECCON{...
flag format and the server output revealing that the
flag is 439 bits long, we can assume these are the top bytes of the flag and pad
the rest to narrow down the interval of possible flag values; let us call these
bounds and .
We then binary search on the possible values of by calculating a mid-point and querying the decryption of . This will decrypt to 1 and from the oracle output we can gain useful information about the value of :2
- When the oracle returns
True
, and therefore - When the oracle returns
False
, and therefore
This also requires but using known flag prefix this will always be true. A linear search for a good starting can be done if we don’t have known flag prefix.
With this information, we can narrow down the range of possible after each query, essentially binary searching for the flag.
Exploit code
from pwn import * context.log_level = "error" # ====== Get parameters ====== r = remote("this-is-not-lsb.seccon.games", 8080) r.recvuntil(b"n = ") n = int(r.recvline().strip().decode()) r.recvuntil(b"e = ") e = int(r.recvline().strip().decode()) r.recvuntil(b"flag_length = ") flag_length = int(r.recvline().strip().decode()) r.recvuntil(b"c = ") c = int(r.recvline().strip().decode()) print(f"{n = }") print(f"{e = }") print(f"{flag_length = }") print(f"{c = }") def query(k): y = (pow(k, e, n) * c) % n r.recvuntil(b"c = ") r.sendline(f"{y}".encode()) res = r.recvline().decode().strip() if res == "True": return True elif res == "False": return False else: raise ValueError(res) dec_lb = int("0011111111".ljust(n.bit_length(), "0"), 2) dec_ub = int("0011111111".ljust(n.bit_length(), "1"), 2) flag_lb = int((b"SECCON{"+ b"\x00" * 48).hex(), 16) flag_ub = int((b"SECCON{"+ b"\xff" * 48).hex(), 16) # ====== Binary search ====== while flag_ub - flag_lb > 10: flag_md = (flag_lb + flag_ub) // 2 coef = dec_lb // flag_md if query(coef): print("-", end="", flush=True) flag_lb = flag_md else: print("+", end="", flush=True) flag_ub = flag_md print() flag = bytes.fromhex(hex(flag_lb)[2:]) print(f"{flag = }")
n = 13843646552185108127[...]578679382305964423040143 e = 65537 flag_length = 439 c = 83362066469299840911[...]29224401955722779580980 +-+-+---+--++-+-+-++--+++-++++--++[...]-++--+++--++-+-++-++++-+---- flag = b'SECCON{WeLC0me_t0_tHe_MirRoR_LaNd!_tHIs_is_lSb_orAcLe!w'
Alternative solution with Inequality-CVP
Consider what happens if several are randomly generated and is queried until the oracle returns True
. This means that we have
some found where , where after some rearranging we have . With enough random , we can model
this as a closest vector problem for solving inequalities.
We might not know the exact value of , but guessing that they
are around is sufficient to help solve
for . We also introduce a scaling term which
will ensure the residues of the term will be in the same magnitude as
the resides from other terms. For more information about this trick, take a look
at rkm0959
’s work on inequality
CVP.
Since 10 bytes are fixed by the padding oracle, a random has a in
chance of its decryption falling in the appropriate range for the
oracle to return True
, which means to obtain valid we can expect it
to take queries which can be done within the time limit.
Exploit code
from pwn import * # https://jgeralnik.github.io/writeups/2021/08/12/Lattices/ def closest_vector(B, target): # Babai's Nearest Plane algorithm M = B.LLL() G = M.gram_schmidt()[0] small = target for _ in range(1): for i in reversed(range(M.nrows())): c = ((small * G[i]) / (G[i] * G[i])).round() small -= M[i] * c return target - small context.log_level = "error" # ====== Get parameters ====== r = remote("this-is-not-lsb.seccon.games", 8080) r.recvuntil(b"n = ") n = int(r.recvline().strip().decode()) r.recvuntil(b"e = ") e = int(r.recvline().strip().decode()) r.recvuntil(b"flag_length = ") flag_length = int(r.recvline().strip().decode()) r.recvuntil(b"c = ") c = int(r.recvline().strip().decode()) print(f"{n = }") print(f"{e = }") print(f"{flag_length = }") print(f"{c = }") def query_many(ks): reqs = [ (c * pow(k, e, n)) % n for k in ks ] req = "\n".join([ str(i) for i in reqs ]) r.sendline(req.encode()) ress = [ [r.recvuntil(b"c = "), r.recvline().decode()[0] == "T"][1] for _ in ks ] return ress dec_lb = int("0011111111".ljust(n.bit_length(), "0"), 2) dec_ub = int("0011111111".ljust(n.bit_length(), "1"), 2) flag_lb = int((b"SECCON{"+ b"\x00" * 48).hex(), 16) flag_ub = int((b"SECCON{"+ b"\xff" * 48).hex(), 16) # ====== Farm for valid k ====== n_samples = 50 samples = [] while len(samples) < n_samples: ks = [randint(2, n) for _ in range(512)] ress = query_many(ks) for k, res in zip(ks, ress): if res: samples.append(k) print(".", end="", flush=True) print() n_samples = len(samples) print(f"{n_samples = }") # ====== Inequality-CVP ====== rows, cols = n_samples + 1, n_samples + 1 mat = [ [0 for _ in range(cols)] for _ in range(rows) ] k_flag_midpoint = (dec_lb + dec_ub) // 2 k_flag_range = dec_ub - dec_lb flag_midpoint = (flag_lb + flag_ub) // 2 flag_range = flag_ub - flag_lb flag_scale = k_flag_range // flag_range mat[0][-1] = flag_scale for idx, s in enumerate(samples): mat[0][idx] = s mat[1+idx][idx] = n vec = [k_flag_midpoint] * n_samples + [flag_midpoint * flag_scale] mat = Matrix(ZZ, mat) vec = vector(vec) cv = closest_vector(mat, vec) flag = cv[-1] // flag_scale flag_bytes = bytes.fromhex(hex(flag)[2:]) print(f"{flag_bytes = }")
n = 12274371278327362987[...]800083923786587181356777 e = 65537 flag_length = 439 c = 56926305483733870652[...]67041160004687782469777 ............................................................ n_samples = 51 flag_bytes = b'SECCON{WeLC0me_t0_tHe_MirRoR_LaNd!_tHIs_is_lSb_orAcLe!}'
Also see SekaiCTF EZMaze and DUCTF rsa interval oracle which has similar themes on binary search / inequality solving.
BBB
By Xornet
Sometimes I can’t distinguish between “b” and “d”
nc BBB.seccon.games 8080
Attachments: dist.tar.gz
50 solves, 136 points
Challenge chall.py
from Crypto.Util.number import bytes_to_long, getPrime from random import randint from math import gcd from secret import FLAG from os import urandom assert len(FLAG) < 100 def generate_key(rng, seed): e = rng(seed) while True: for _ in range(randint(10,100)): e = rng(e) p = getPrime(1024) q = getPrime(1024) phi = (p-1)*(q-1) if gcd(e, phi) == 1: break n = p*q return (n, e) def generate_params(): p = getPrime(1024) a = randint(0, p-1) return (p,a) def main(): p,a = generate_params() print("[+] The parameters of RNG:") print(f"{a=}") print(f"{p=}") b = int(input("[+] Inject [b]ackdoor!!: ")) rng = lambda x: (x**2 + a*x + b) % p keys = [] seeds = [] for i in range(5): seed = int(input("[+] Please input seed: ")) seed %= p if seed in seeds: print("[!] Same seeds are not allowed!!") exit() seeds.append(seed) n, e = generate_key(rng, seed) if e <= 10: print("[!] `e` is so small!!") exit() keys.append((n,e)) flag = bytes_to_long(FLAG + urandom(16)) for n,e in keys: c = pow(flag, e, n) print("[+] Public Key:") print(f"{n=}") print(f"{e=}") print("[+] Cipher Text:", c) if __name__ == "__main__": main()
The server encrypts the flag with 5 RSA keypairs with e
that is determined by
the function . The key generation
procedure does seed = rng(seed)
a random number of times and the end result is
the e
parameter for the RSA key.
The prime and random are generated by the server, but we have control
over the parameter b
and 5 initial values of seed
.
Since the padded length of FLAG
is at most 928 bits long, 5 pairs of 2048-bit
RSA key and an e=11
is vulnerable to Hastad’s broadcast attack since . The issue now is how to select b
and 5
seed
to get e=11
multiple times.
The first observation is that we want the function to be “stable” around
seed=11
; after reaching seed=11
any further operations of seed = rng(11)
should
not change seed
. This implies that , and with this we can solve for the value of .
We can now send the first seed
as 11, but are there other values where
? This is a quadratic equation which can have 2 roots, of which
one will be 11 and the other can be some large number. Since this equation is in
a prime ring modulo , we can easily solve for this other root

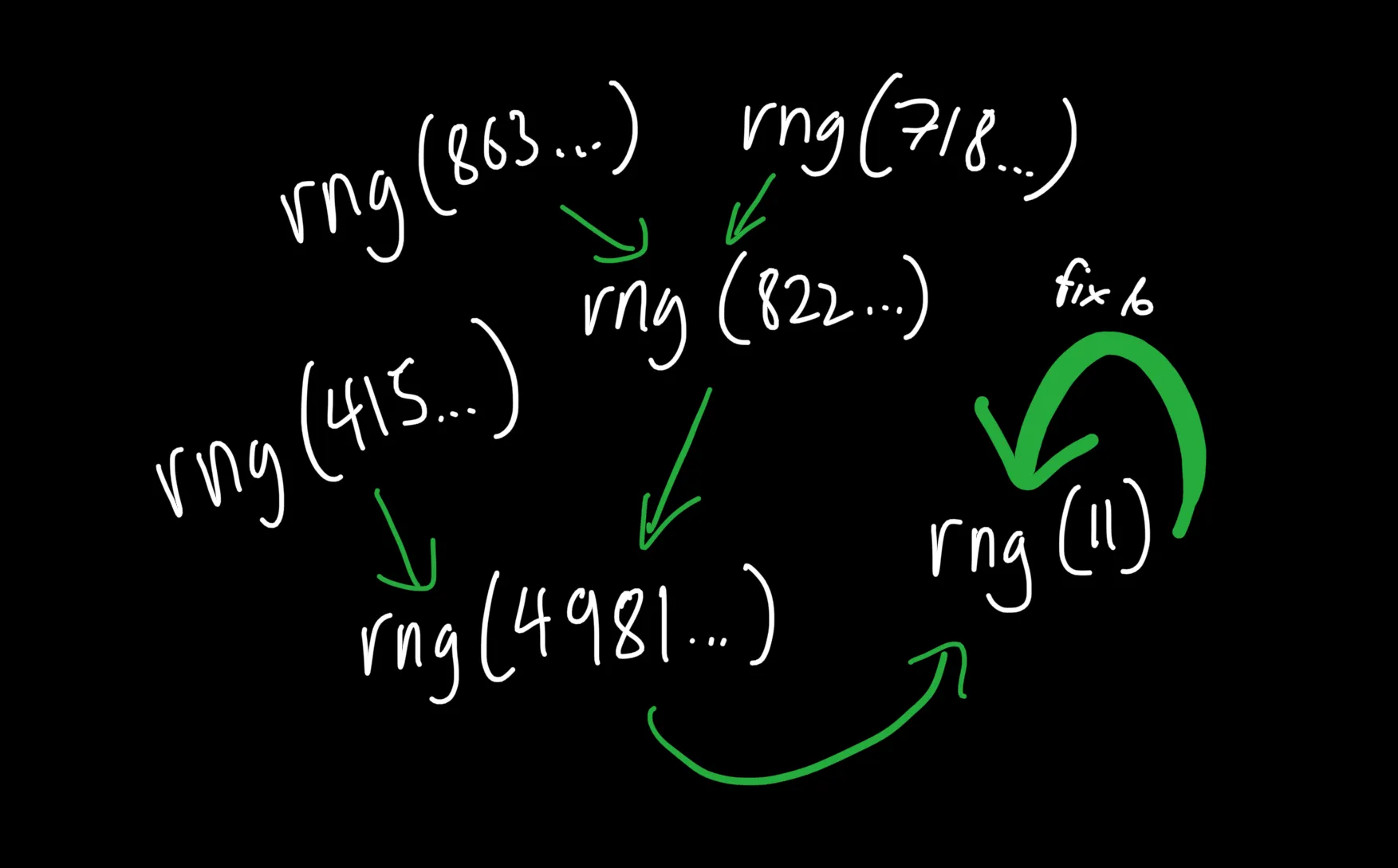

where to get a second possible seed value. To generate more
possible seeds, we can solve for more seeds where and so on until we get enough seeds for 5 keypairs.
Finally, we can submit these 5 seeds and regenerate over the integers using the Chinese Remainder Theorem, then get flag using integer roots.
Exploit code
# ====== Get parameters ====== from pwn import * context.log_level = "error" r = remote("BBB.seccon.games", 8080) r.recvuntil(b"a=") a = int(r.recvline().decode().strip()) r.recvuntil(b"p=") p = int(r.recvline().decode().strip()) print(f"{a = }") print(f"{p = }") # ====== Calculate b ====== F = Zmod(p) R.<x> = PolynomialRing(F, "x") e = 11 eq = e ^ 2 + a * e + x - e b = -eq.coefficients()[0] print(f"{b = }") print(f"{(x ^ 2 + a * x + b).subs(x=11) = }") # ====== Find other roots ====== good_roots = [e] search_roots = [e] while search_roots and len(good_roots) < 5: root = search_roots.pop() eq = (x ^ 2 + a * x + b - root) for new_root, _ in eq.roots(): if new_root in good_roots: continue print(f"rng({new_root}) = {root}") good_roots.append(new_root) search_roots.append(new_root) print(f"{len(good_roots) = }") assert len(good_roots) >= 5 # ====== Claim flag ====== r.recvuntil(b"[+] Inject [b]ackdoor!!: ") r.sendline(f"{b}".encode()) for root in good_roots[:5]: r.recvuntil(b"[+] Please input seed: ") r.sendline(f"{root}".encode()) encs = [] for _ in good_roots[:5]: r.recvuntil(b"n=") n = int(r.recvline().decode().strip()) r.recvuntil(b"e=") e = int(r.recvline().decode().strip()) r.recvuntil(b"[+] Cipher Text: ") c = int(r.recvline().decode().strip()) encs.append((n, e, c)) flag_e11 = CRT_list([i[2] for i in encs], [i[0] for i in encs]) flag_int = flag_e11.nth_root(11) flag = bytes.fromhex(hex(int(flag_int))[2:]) print(f"{flag = }")
a = 58565556875033097418[...]43915055492039312594008 p = 10838179308804807042[...]624848130251995513098473 b = 60696329029243509419[...]6023171099540640056640 (x ** Integer(2) + a * x + b).subs(x=Integer(11)) = 11 rng(49816236213014973005[...]80933074759956200504454) = 11 rng(41590708505742891949[...]60452743016290828808379) = 49816236213014973005[...]80933074759956200504454 rng(82255277072720810564[...]0480331743665371696086) = 49816236213014973005[...]80933074759956200504454 rng(86352831126465586764[...]90103301110960958533298) = 82255277072720810564[...]0480331743665371696086 rng(71845198174597456665[...]15677903900990755069640) = 82255277072720810564[...]0480331743665371696086 len(good_roots) = 6 flag = b'SECCON{Can_you_find_d_in_bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbdbbbbbbbbbbbbbbbbbbbbbbbbbbbbb?}c\x1au\xc2Z\xec\xa0?>N=}\x1dj\xe1|'
pqpq
By kurenaif
Warm your hands first. It’s not obvious, right?
Attachments: output.txt problem.py
112 solves, 96 points
Challenge problem.py
from Crypto.Util.number import * from Crypto.Random import * from flag import flag p = getPrime(512) q = getPrime(512) r = getPrime(512) n = p * q * r e = 2 * 65537 assert n.bit_length() // 8 - len(flag) > 0 padding = get_random_bytes(n.bit_length() // 8 - len(flag)) m = bytes_to_long(padding + flag) assert m < n c1p = pow(p, e, n) c1q = pow(q, e, n) cm = pow(m, e, n) c1 = (c1p - c1q) % n c2 = pow(p - q, e, n) print(f"e = {e}") print(f"n = {n}") # p^e - q^e mod n print(f"c1 = {c1}") # (p-q)^e mod n print(f"c2 = {c2}") # m^e mod n print(f"cm = {cm}")
This is a case of multi-prime RSA with abnormal exponent .
We can recover , and by manipulating leaked values and :
A RSA decryption key to match cannot be calculated since is even and therefore not is not coprime to . However, since we know the values of , and , we can calculate the 8 possible values of and proceed as if instead.
Exploit code
# ====== Parameters ====== e = 131074 n = 587926815910957928506680558951380405698765957736660571041732511939308424899531125274073420353104933723578377320050609109973567093301465914201779673281463229043539776071848986139657349676692718889679333084650490543298408820393827884588301690661795023628407437321580294262453190086595632660415087049509707898690300735866307908684649384093580089579066927072306239235691848372795522705863097316041992762430583002647242874432616919707048872023450089003861892443175057 c1 = 92883677608593259107779614675340187389627152895287502713709168556367680044547229499881430201334665342299031232736527233576918819872441595012586353493994687554993850861284698771856524058389658082754805340430113793873484033099148690745409478343585721548477862484321261504696340989152768048722100452380071775092776100545951118812510485258151625980480449364841902275382168289834835592610827304151460005023283820809211181376463308232832041617730995269229706500778999 c2 = 46236476834113109832988500718245623668321130659753618396968458085371710919173095425312826538494027621684566936459628333712619089451210986870323342712049966508077935506288610960911880157875515961210931283604254773154117519276154872411593688579702575956948337592659599321668773003355325067112181265438366718228446448254354388848428310614023369655106639341893255469632846938342940907002778575355566044700049191772800859575284398246115317686284789740336401764665472 cm = 357982930129036534232652210898740711702843117900101310390536835935714799577440705618646343456679847613022604725158389766496649223820165598357113877892553200702943562674928769780834623569501835458020870291541041964954580145140283927441757571859062193670500697241155641475887438532923910772758985332976303801843564388289302751743334888885607686066607804176327367188812325636165858751339661015759861175537925741744142766298156196248822715533235458083173713289585866 # ====== Recover key ====== p = gcd(c1 + c2, n) print(f"{p = }") q = gcd(c1 - c2, n) print(f"{q = }") r = n // p // q print(f"{r = }") assert p * q * r == n phi = (p-1) * (q-1) * (r-1) ee = e // 2 dd = ZZ(Zmod(phi)(ee) ^ -1) print(f"{dd = }") # ====== Manual square root then decrypt ====== from itertools import product for rp, rq, rr in product(*[Zmod(m)(cm).sqrt(all=True) for m in [p, q, r]]): cmm = CRT_list([ZZ(rp), ZZ(rq), ZZ(rr)], [p, q, r]) pt = Zmod(n)(cmm) ^ dd print(bytes.fromhex(hex(pt)[2:].zfill(512))[-50:])
p = 75724277866950572706[...]00576592403320929717 q = 86092588964302105865[...]07084038768336538857 r = 90182518745618504676[...]46165598701061994853 dd = 570020870802724838415597134387[...]230025007541067468855040422529 b"\xfd6\x86\xff$b#Ea2E\xb3!\xf8\xd3~\xc1N\x17\x87'\n\xc6b\xdbY\xca\xe7#\x9e\xd0\x96\x97'[\x18\xe0\xed\x17:\xbcb\xae[p6Ww\x11\xf7" b'\x1e\x8d\xedm\tb\xd8\x15R\xd5\xb8\x9a\x95\xc9\x0eo\xd4\t\xc4\x12/\x06\xcc\xa5[\xa8\x17\x844\t\x8f=\x9b($\x886\x90\\|\x81\x81\x06\xb2!+\x03w\x1c(' b'\x8b(T\xdb\xc4\x8d\xad|\x14\x00\x93y\xe1j\x9d\xa0\x19\x04\xdd"\xdb\'\xe0(\xd1\xa0y\x0e\xcb1\x9b}\x9a\x13\n\xf9\xbe\xf3\x95<\xa9\x15\xb9~\xa8\t\xc3\xccW\x14' b'\xe0\x82\xee\xdf)\xaf\xba\xb8\x9e^/\xa4$\x81\xbf\x8e\xadR>#\xa8\x9a\xa3\xd6\x1a\xee\xd8-\xb0\xf7\x8e:\x8d\x9bi\xfa\xed9\xd1\xe2\x93\xaa\xf8\xef>\x8fJ\x8b\xe8\xb4' b'\xeby\xdd\x8bV.\xec\xda\xc8\xe7\xa7\x19\x0c7Ys\xd1\x1c\rf\x91\xee\x9e\xbf\x1c\x11\x15Py\xad=\xaf\x82\xdd\x00s:#6\xb9F\xde\x1f\xf6\xdb\xdf\xda\xb4\x8f\xdd' b'@\xd4w\x8e\xbbP\xfa\x17SECCON{being_able_to_s0lve_this_1s_great!}' b'\xadn\xde\xfdv{\xcf~\x14p\x1e"\x9a\xf0\n\x92\xaad\x87x\x0b\x82u\xef\xdbW\xd5\xf9\xf6\x9b<\xacuPE\xe5\xf0\xcc\xac\x1fY\x08\x123\xf9D!\xc9\\i' b'\xce\xc6Ek[|\x84N\x06\x13\x91\n\x0e\xc0E\x83\xbd 4\x03\x13~|2[\xa6"\x97\x07\x05\xfbSyQ\x0fUFo\xf1a\x1e&j\x8a\xaa8\xcd\xc9f\x9a'
